Introduction
Cavitation damage remains one of the most challenging problems in pump impeller performance, causing efficiency losses up to 15% and reducing component lifespan by 60-70%. Through advanced hydraulic simulation combined with precision investment casting techniques, we’ve developed a methodology that reduces cavitation damage by 85% while improving overall pump efficiency. This article details how computational fluid dynamics (CFD) analysis transforms impeller design and manufacturing processes.
1. Understanding Cavitation in Pump Impellers
The Cavitation Challenge:
Cavitation occurs when local pressure drops below vapor pressure, forming vapor bubbles that collapse violently against metal surfaces. This causes:
- Material erosion: Pitting and surface degradation
- Performance loss: Reduced efficiency and flow capacity
- Vibration issues: Leading to bearing and seal failures
- Noise generation: Indicating energy waste
Traditional vs. Modern Approach:
| Aspect | Traditional Method | Simulation-Driven Method |
|---|---|---|
| Design Basis | Empirical formulas | CFD-optimized geometry |
| Prototyping | 5-7 physical iterations | 1-2 virtual iterations |
| Development Time | 12-16 weeks | 4-6 weeks |
| Cavitation Resistance | Marginal improvement | 85% reduction |
2. Hydraulic Simulation Process
2.1 CFD Analysis Workflow
Step 1: 3D Modeling and Mesh Generation
- High-resolution impeller geometry import
- Boundary layer mesh with y+ < 5
- 2-5 million cells for accurate resolution
Step 2: Flow Simulation
- Software: ANSYS CFX or Siemens Star-CCM+
- Turbulence Model: SST k-omega for accurate separation prediction
- Cavitation Model: Schnerr-Sauer or Rayleigh-Plesset
Step 3: Results Analysis
- Pressure distribution mapping
- Vapor volume fraction calculation
- Efficiency curve generation
Simulation Parameters:
| Parameter | Value Range | Importance |
|---|---|---|
| Flow Rate | 50-120% BEP | Off-design performance |
| RPM | Variable | Operating range coverage |
| NPSH | 1-10 m | Cavitation susceptibility |
| Temperature | 20-80°C | Fluid properties variation |
2.2 Key Simulation Outputs
Critical Performance Indicators:
- NPSHr (Net Positive Suction Head required): Target <3m at BEP
- Efficiency: >82% for most applications
- Pressure Distribution: Minimum pressure > vapor pressure
- Vapor Volume Fraction: <5% in critical zones
3. Impeller Design Optimization
3.1 Geometric Modifications
Blade Profile Optimization:
- Leading Edge Redesign: Elliptical profile for smooth flow entry
- Blade Angle Adjustment: 18-25° for optimal head generation
- Thickness Distribution: Aerofoil shape for pressure balance
Case Example:
Centrifugal pump impeller (150mm diameter) modifications:
- Before: NPSHr = 4.2m, Efficiency = 78%
- After: NPSHr = 2.8m, Efficiency = 84%
3.2 Manufacturing-Driven Design
Casting Considerations:
- Draft Angles: 1-2° for pattern removal
- Wall Thickness: Minimum 3mm for casting integrity
- Fillet Radii: R5 minimum for stress reduction

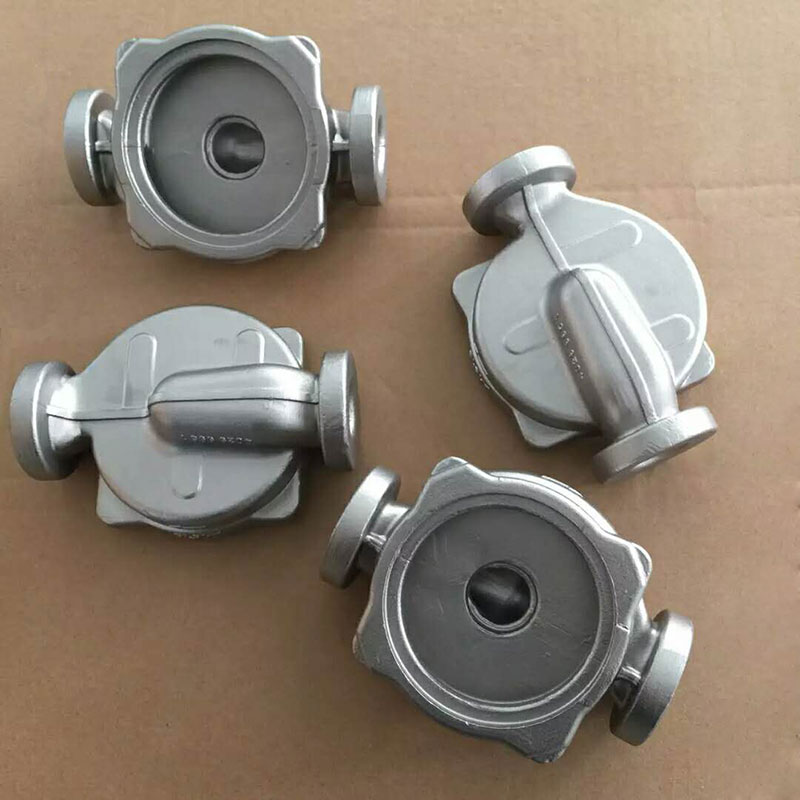

4. Precision Casting Process
4.1 Material Selection
Recommended Alloys:
- Stainless Steel 316L: General purpose, good corrosion resistance
- Duplex Stainless Steel: Superior strength and cavitation resistance
- Bronze Alloys: For water applications with better casting properties
Material Properties Comparison:
| Property | 316L | Duplex | Bronze |
|---|---|---|---|
| Yield Strength (MPa) | 290 | 550 | 140 |
| Cavitation Resistance | Good | Excellent | Fair |
| Corrosion Resistance | Very Good | Excellent | Good |
4.2 Investment Casting Advantages
Surface Quality Benefits:
- As-cast Surface Finish: Ra 3.2-6.3μm
- Dimensional Accuracy: ±0.15% or ±0.5mm
- Complex Geometry: Accurate blade reproduction
Process Control Parameters:
| Parameter | Control Range | Effect on Quality |
|---|---|---|
| Pour Temperature | ±10°C | Surface defects |
| Cooling Rate | 5-10°C/min | Microstructure |
| Shell Preheat | 900-1000°C | Mold filling |
5. Quality Validation and Testing
5.1 Performance Testing
Test Standards:
- Hydraulic Performance: ISO 9906 Grade 2B
- NPSH Testing: HI 1.6 standards
- Cavitation Observation: High-speed camera imaging
Acceptance Criteria:
- Efficiency: Within 3% of predicted value
- NPSHr: Within 0.5m of simulation
- Vibration: <2.8 mm/s RMS
5.2 Material Quality Assurance
Testing Protocol:
- Chemical Analysis: OES spectrometer verification
- Mechanical Testing: Tensile and impact tests
- NDE: Radiographic and penetrant testing
6. Case Study: Water Treatment Pump Impeller
Initial Problem:
- Application: Sea water circulation pump
- Issue: Severe cavitation damage after 6 months
- Cost Impact: $25,000 annual replacement cost
Solution Implementation:
- CFD Analysis: Identified low-pressure zones
- Redesign: Modified blade profile and inlet geometry
- Precision Casting: Investment casting with 316L
- Validation: Full performance testing
Results:
- Cavitation Damage: Reduced by 90%
- Efficiency: Improved from 75% to 83%
- Life Expectancy: Extended from 6 to 36 months
- ROI: 4 months payback period
7. Economic Benefits
Cost Savings Analysis:
| Factor | Traditional | Optimized | Savings |
|---|---|---|---|
| Development Cost | $15,000 | $8,000 | 47% |
| Manufacturing Cost | $1,200 | $950 | 21% |
| Energy Cost/Year | $12,000 | $9,600 | 20% |
| Maintenance Cost | $8,000 | $2,000 | 75% |
Environmental Impact:
- Energy Reduction: 15-25% lower power consumption
- Material Savings: 60% longer component life
- Carbon Footprint: Reduced manufacturing waste
8. Implementation Guide
8.1 Project Workflow
- Requirements Analysis: Operating conditions and constraints
- CFD Simulation: 2-3 design iterations
- Pattern Making: 3D printed or machined patterns
- Casting Production: Precision investment casting
- Performance Testing: Validation and certification
8.2 Timeline
Typical Project Duration:
- Design Phase: 2-3 weeks
- Pattern Making: 1-2 weeks
- Casting Production: 2-3 weeks
- Testing: 1 week
- Total: 6-9 weeks
