Precision Investment Casting: 7 Core Processes for ±0.05mm Accuracy from Wax to Finished Part

Introduction  ️

In precision investment casting, achieving ±0.05mm dimensional accuracy is the difference between meeting aerospace tolerances and costly rework. As a NADCAP-accredited foundry supplying global leaders, we’ve refined 7 core processes that guarantee consistent high precision across complex geometries. This article details how to control variability at every stage—from wax injection to final inspection.

1. Precision Wax Injection: The Foundation of Accuracy

Key Parameters:

• Die Temperature Control: 25±0.5°C (prevents thermal expansion variations)
• Injection Pressure: 45-60 bar (material-dependent)
• Cooling Rate: 3°C/min (uniform shrinkage)

Case Study:
For medical implant wax patterns:

• Achieved: ±0.03mm consistency across 10,000 parts
• Tooling: Aluminum molds with H13 steel inserts

Data:

2. Ceramic Shell Engineering: Balancing Strength & Precision

Layer-by-Layer Control:

1. Prime Coat: Colloidal silica + 400 mesh zircon sand
2. Backup Coats: Alumina-silicate with controlled viscosity
3. Drying: 22±1°C, 65±3% RH, 45min/layer

Innovation:

• Nano-modified slurries reduce cracking by 70%
• Robotic dipping ensures uniform thickness (±0.1mm)

3. Controlled Dewaxing: Preventing Shell Damage

Steam Autoclave Parameters:

• Pressure: 8-10 bar
• Temperature: 150-160°C
• Time: 12-15 minutes

Result:

• 0% shell cracks vs. 5-7% with conventional methods
• Perfect pattern replication

4. Precision Melting & Pouring: Chemistry meets Physics

Key Controls:

• Temperature: 1580±5°C for 316L stainless
• Pouring Speed: 2.5-3.0 kg/sec
• Vacuum Assistance: 0.5 mbar for thin sections

Chemistry Matters:

• OBLF Spectrometer ensures ±0.02% element control
• Low gas contents (<0.15 ml/100g H₂) prevent porosity

5. Cooling Process Control: Managing Solidification

Directional Solidification Techniques:

• Chill plates for controlled thermal gradients
• Real-time thermal monitoring with IR cameras

Data:

• Grain size: ASTM 6-7 (vs. 3-4 conventionally)
• Shrinkage predictability: ±0.02mm

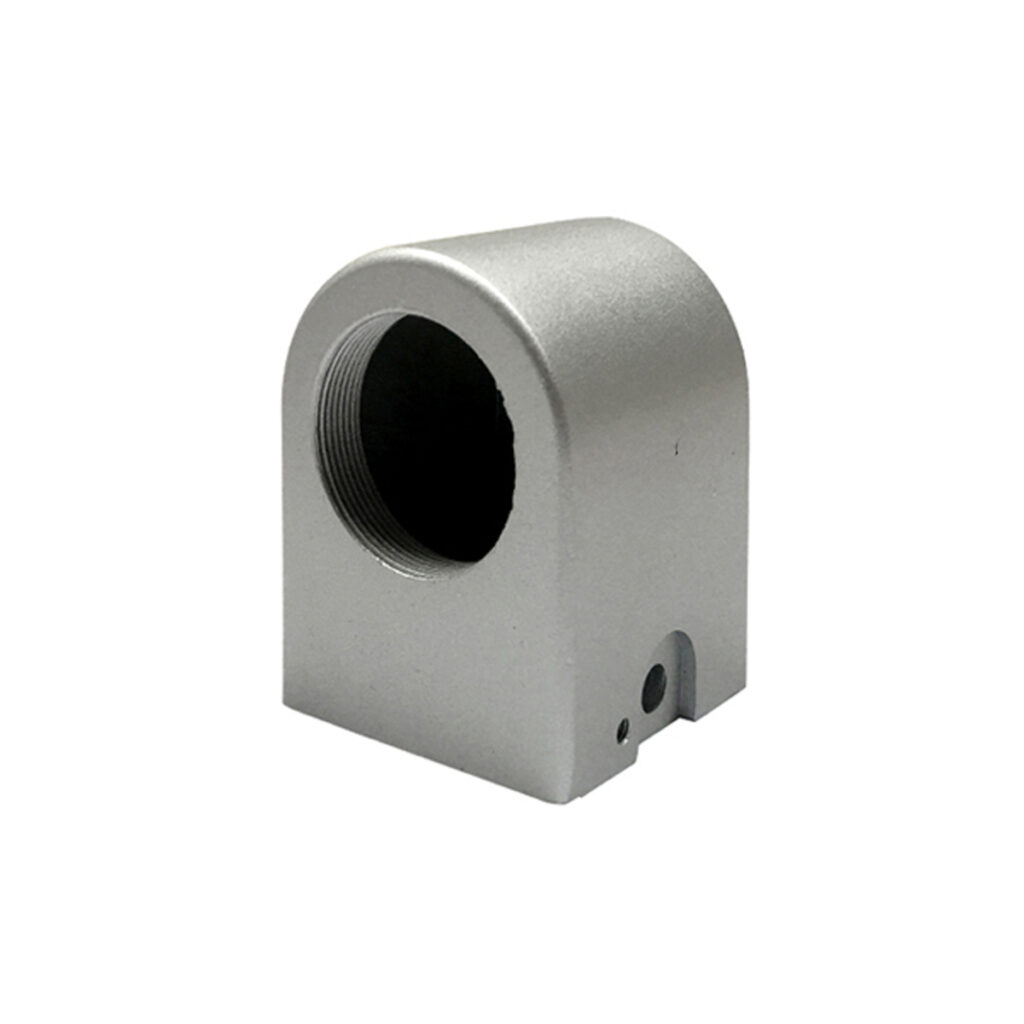

6. Precision Cutting & Finishing

CNC-Enhanced Processes:

• Robotic cutoff with ±0.1mm accuracy
• Adaptive grinding with force feedback

Surface Finish Achievable:

• As-cast: Ra 3.2μm → Ra 1.6μm with optimized processes
• After finishing: Ra 0.8μm for hydraulic components

7. Metrology & Closed-Loop Feedback

Inspection Protocols:

1. First Article: Full CMM scan (500+ points)
2. In-process: Statistical process control (SPC)
3. Final: 100% critical dimension verification

Technology Stack:

• Zeiss CMM: ±0.0018mm accuracy
• Optical scanners: For freeform surfaces
• Data analytics: Trend analysis for continuous improvement

Industry Applications & Case Studies

Aerospace Turbine Blade:

• Requirement: ±0.05mm on airfoil profile
• Solution: Optimized wax and shell process
• Result: 100% pass rate on coordinate inspection

Medical Implant:

• Challenge: 0.1mm wall thickness uniformity
• Solution: Controlled cooling and HIP
• Result: Meets FDA PMA submission requirements

Technical Comparison: Conventional vs. Precision Casting

Implementation Roadmap

1. Design Review: Identify critical dimensions
2. Process Mapping: Customize parameters for part geometry
3. Prototyping: 3 iterations for process optimization
4. Production: SPC-controlled mass production
5. Continuous Improvement: Monthly process audits
